6 Signs Your Hydraulic System Is Telling You Something’s Wrong

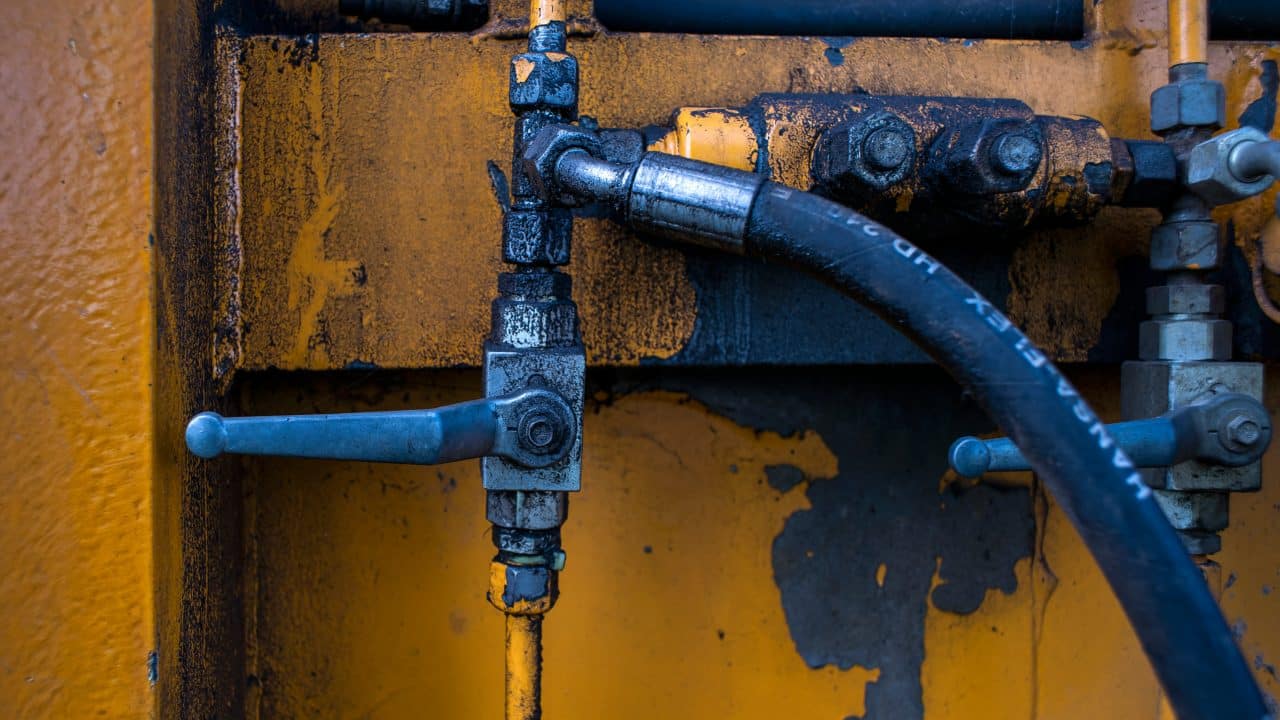

Photo by Lucas van Oort on Unsplash

Problems usually start with a weird sound. Sometimes, it’s a low whining noise you’ve never heard before, or maybe your machine responds a little slower than usual. But this doesn’t happen every time you use it, so what do you do? You ignore it. A few days later, there’s a streak of fluid under the lift. You wipe it off and move on, nothing to see here.

Then one morning, your system doesn’t respond. At all, not even a little. Now you have downtime, lost hours, and the cost of repair you could have avoided.

You might not want to admit that to yourself, but your hydraulic system did warn you. But those warnings are easy to miss if you don’t know what they are. The signs aren’t always dramatic, and it could be just some heat where it shouldn’t be or a movement that feels a tiny bit off.

In this article, you’ll learn all about those signs that are not so noticeable.

Signs You Should Not Ignore

Small problems don’t stay small. That strange sound you think is ‘nothing’ will eventually turn into a system failure if you don’t take care of it.

Here are 6 clear signs that something is wrong.

1. Strange Noise

If your machine starts to make noises that remind you of grinding metal, high-pitched whines, or random knocking sounds, don’t brush it off. These sounds usually mean air is getting into the system (aeration), or worse, that vapor bubbles are collapsing inside the pump, which is a damaging process known as cavitation. Both can tear up components from the inside.

It’s also good to check for worn or misaligned hydraulic pump parts because those are often to blame when internal components stop fitting together the way they should. When the noise gets louder, the damage is already done, so don’t wait for that to happen – get it fixed.

Proper and regular maintenance will keep these strange noises at bay. But you can’t really know when something will go wrong or what, for that matter. So, if you aren’t sure, get it checked by a professional. Better to be safe than sorry (having to pay a massive bill).

2. Sluggish or Inconsistent Actuator Movement

When a hydraulic actuator takes longer than usual to extend, or moves in an uneven, jumpy way, that’s a clear sign that your system is under stress. It might be struggling with fluid contamination, clogged filters, or piston seals that have started to break down.

‘Slow’ doesn’t seem like a big deal at first, but then you start to realize that your system can’t keep up with the workflow, and it becomes a problem. A smart thing to do would be to check your fluid for debris or discoloration.

Unless the fluid is clean, your entire system is working harder than it should.

3. Sudden Drops in Pressure

You’ll definitely feel it when the pressure drops; equipment that used to lift with ease now feels weak, or your cycle times get slower. These symptoms usually point to internal leakage, faulty pressure regulation, or failing pump rotors that can’t maintain a consistent flow.

First, check the pressure gauges. If they show signs of fluctuation or they drop below what’s normal, it’s time to investigate further. Don’t ignore this or you risk a full system failure.

4. Overheating Hydraulic Fluid

Hydraulic fluid should stay at a temperature under 180°F because that’s what’s safe. If it goes above that, the fluid starts to lose viscosity, which means it can’t lubricate or transfer energy as well. This speeds up wear on every moving part in the system. Overheating usually comes from internal friction, which is often a sign of failing components or poor fluid circulation.

If your equipment feels hot to the touch or you’re noticing that something smells scorched during use, don’t ignore it. Overheating is a system killer.

5. Visible Fluid Leaks Around Seals or Hoses

There’s a reason that hydraulic systems are pressurized and sealed. When fluid starts to leak out, something is not holding up. Leaks can happen around hose connections, actuator seals, or fitting points. If you’re wiping up fluid more than once, or seeing pressure drop over time – that’s a warning; something’s very wrong and it won’t just go away.

Seals will wear off, surfaces will get pitted, and once fluid finds a way out, it won’t stop on its own – in fact, it’ll just get progressively worse. Fix the leak or you’re looking at a good amount of downtime.

6. Jerky or Erratic Equipment Movements

Hydraulic equipment should move smoothly. Anything less than that puts both performance and operator safety at risk. Jerky, sudden, or inconsistent movements often mean there’s air trapped in the system, valves that aren’t opening properly, or debris blocking the flow of fluid.

Even small interruptions can make the equipment unpredictable, especially under load. If a machine starts to behave like it has a mind of its own, stop using it and see what’s up. You can’t trust unstable hydraulics.

Conclusion

Your hydraulic system won’t throw a tantrum, at least not at first. It’ll kind of nudge, whisper, and occasionally groan. If you don’t see what’s wrong during this stage, it will groan all the way to total failure and then you’ll have some real problems to deal with.

As soon as you notice that your machine is being moody, investigate it, and your sanity will thank you later.

---
